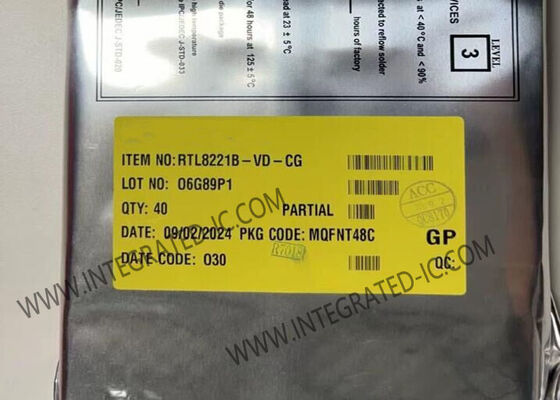

RTL8221B-VD-CG Ethernet IC 10/100/1000M/2.5G PHY Transceiver with QFN-48 Package and IEEE 802.3 Compatibility

RTL8221B-VD-CG is a highly integrated Ethernet PHY transceiver compatible with 10BASE-Te, 100BASE-TX, 1000BASE-T, and 2.5GBASE-T standards. Fully compliant with IEEE 802.3 standards and NBASE-T™ Alliance PHY specifications, it provides all necessary physical layer functions for transmitting and receiving Ethernet packets over CAT.5e UTP cable.

Utilizing advanced DSP technology and Analog Front End (AFE), the RTL8221B-VD-CG enables high-speed data transmission and reception. It incorporates comprehensive features including Crossover Detection & Auto-Correction, polarity correction, MDI swap, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, RFI protection, thermal management, loopback diagnostic capability, and error correction for robust performance.

Data transfer between MAC and PHY occurs via the SERDES interface, supporting SGMII, HiSGMII, and 2500Base-X. The device operates at various digital I/O voltages including 3.3V and 1.8V.

• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standards
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.3bz (2.5GBASE-T)
• Supports Full Duplex flow control (IEEE 802.3x)
• Integrated 10M BASE-Te and 100M/1000M/2.5GBASE-T transceiver
• Supports 2.5G Lite (1G data rate) mode
• Auto-Negotiation with Extended Next Page capability (XNP)
• Compatible with NBASE-T™ Alliance PHY Specification
• Supports pair swap/polarity/skew correction
• Crossover Detection & Auto-Correction
• Configurable MDI port ordering for easy PCB layout
• Supports hardware CRC function
• Supports power down/link down power saving mode
• Supports clause 22 and Clause 45 MDC/MDIO management interface
• Selectable SERDES interface to MAC control
• Built-in Wake-on-LAN (WOL) over UTP
• Supports Interrupt function over UTP
• 22nm process with ultra-low power consumption
• Complete hardware support for Synchronous Ethernet and Precision Time Protocol
• Supports SPI Flash (up to 24MB flash size)
• Industrial grade manufacturing process
• 48-pin QFN Green Package

• DTV (Digital TV)
• MAU (Media Access Unit)
• CNR (Communication and Network Riser)
• Game Console
• Printer and Office Machine
• DVD Player and Recorder
• Ethernet Hub
• Ethernet Switch
• Base Stations and Controllers
• Routers, DSLAMs, PON Equipment
• Test and Measurement Systems
• Industrial and Factory Automation Equipment
• Multimedia synchronization and Real Time Networking
