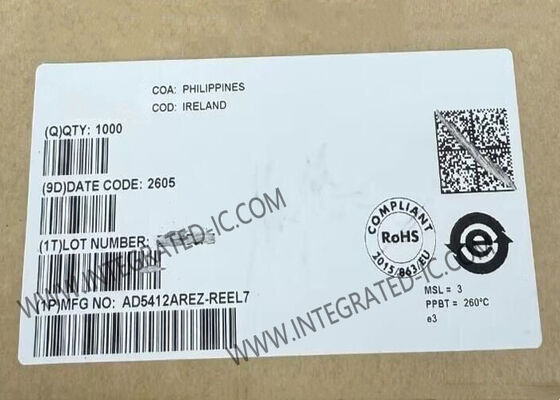

AD5412AREZ Integrated Circuit Chip Single Channel 12-Bit Current Source & Voltage Output DAC
Product Description Of AD5412AREZ
AD5412AREZ is low cost, precision, fully integrated 12-/16-bit digital-to-analog converters (DAC) offering a pro-grammable current source and programmable voltage output designed to meet the requirements of industrial process control applications.
The output current range is programmable at 4 mA to 20 mA, 0 mA to 20 mA, or an overrange function of 0 mA to 24 mA.
Specifications Of AD5412AREZ
|
umber of Bits
|
|
|
Number of D/A Converters
|
|
|
Settling Time
|
|
|
Output Type
|
Voltage or Current - Buffered
|
|
Differential Output
|
|
|
Data Interface
|
|
|
Reference Type
|
|
|
Voltage - Supply, Analog
|
|
|
Voltage - Supply, Digital
|
|
|
INL/DNL (LSB)
|
|
|
Architecture
|
|
|
Operating Temperature
|
|
Features Of AD5412AREZ
12-bit resolution and monotonicity
Current output ranges: 4 mA to 20 mA, 0 mA to 20 mA, or 0 mA to 24 mA
±0.01% FSR typical total unadjusted error (TUE)
±3 ppm FSR/°C output drift
Voltage output ranges: 0 V to 5 V, 0 V to 10 V, ±5 V, or ±10 V
10% overrange
±0.01% FSR typical TUE
±2 ppm FSR/°C output drift
Flexible serial digital interface
On-chip output fault detection
On-chip reference: 10 ppm/°C maximum
Optional regulated DVCC output
Asynchronous clear function
Power supply range
AVDD: 10.8 V to 40 V
AVSS: −26.4 V to −3 V/0 V
Current loop compliance voltage: AVDD – 2.5 V
Temperature range: −40°C to +105°C
Applications Of AD5412AREZ
Process controls
Actuator controls
PLC
HART network connectivity (LFCSP package only)
