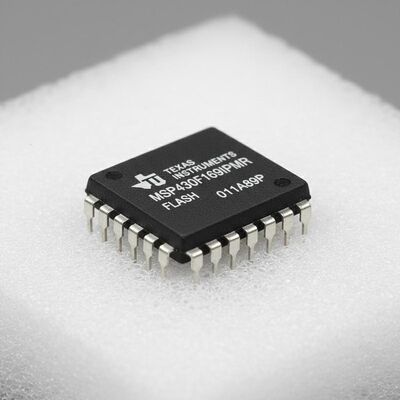

MSP430F169IPMR Microcontroller MCU
Ultralow Power 16-Bit 8MHz MSP430 Microcontroller featuring advanced power management and comprehensive peripheral integration for portable measurement applications.
Product Overview
The MSP430F169IPMR ultralow power microcontroller series offers multiple device configurations with specialized peripherals for diverse applications. Its architecture, combined with five low-power modes, is engineered to maximize battery life in portable measurement systems. The device incorporates a powerful 16-bit RISC CPU, 16-bit registers, and constant generators for optimal code efficiency. The digitally controlled oscillator (DCO) enables rapid wake-up from low-power modes to active mode in under 6 µs.
Technical Specifications
| Parameter |
Specification |
| Core Size |
16-Bit |
| Speed |
8MHz |
| Connectivity |
I2C, SPI, UART/USART |
| Peripherals |
Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O |
48 |
| Program Memory Size |
60KB (60K x 8 + 256B) |
| Program Memory Type |
FLASH |
| EEPROM Size |
- |
| RAM Size |
2K x 8 |
| Voltage Supply |
1.8V ~ 3.6V |
| Data Converters |
A/D 8x12b; D/A 2x12b |
| Oscillator Type |
Internal |
| Operating Temperature |
-40°C ~ 85°C (TA) |
Key Features
- Low Supply-Voltage Range: 1.8 V to 3.6 V
- Ultralow Power Consumption: Active Mode: 330 µA at 1 MHz, 2.2 V
- Standby Mode: 1.1 µA | Off Mode (RAM Retention): 0.2 µA
- Five Power-Saving Modes
- Wake-Up From Standby Mode in Less Than 6 µs
- 16-Bit RISC Architecture, 125-ns Instruction Cycle Time
- Three-Channel Internal DMA
- 12-Bit Analog-to-Digital (A/D) Converter with Internal Reference, Sample-and-Hold, and Autoscan Feature
- Dual 12-Bit Digital-to-Analog (D/A) Converters With Synchronization
- 16-Bit Timer_A With Three Capture/Compare Registers
- 16-Bit Timer_B With Three or Seven Capture/Compare-With-Shadow Registers
- On-Chip Comparator
- Serial Communication Interface (USART0) - Functions as Asynchronous UART or Synchronous SPI or I2C Interface
- Serial Communication Interface (USART1) - Functions as Asynchronous UART or Synchronous SPI Interface
- Supply Voltage Supervisor/Monitor With Programmable Level Detection
- Brownout Detector
- Bootstrap Loader
- Serial Onboard Programming, No External Programming Voltage Needed
- Programmable Code Protection by Security Fuse
Typical Applications
Sensor systems, industrial control applications, hand-held meters, and other portable measurement devices.
