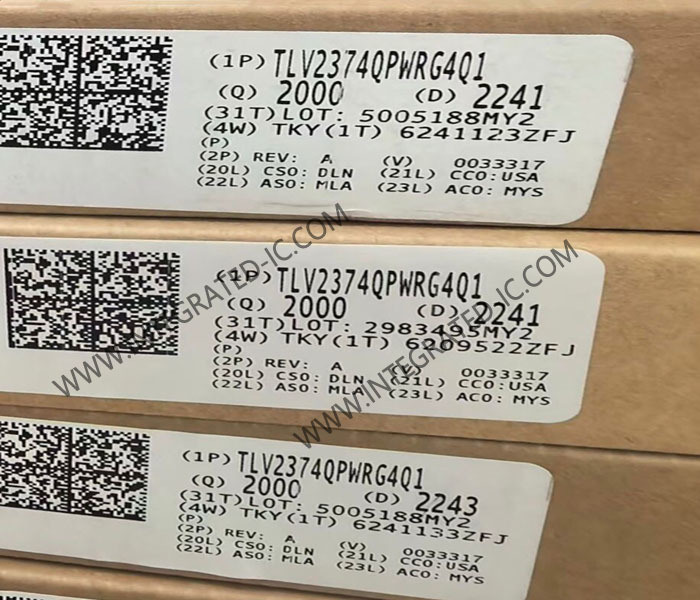

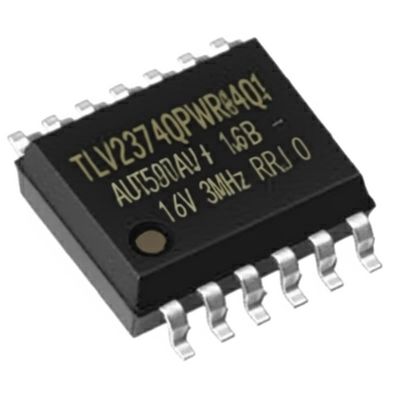

TLV2374QPWRG4Q1 Integrated Circuit Chip Automotive Quad 16V 3MHz RRIO Operational Amplifiers
Product Description Of TLV2374QPWRG4Q1
TLV2374QPWRG4Q1 is single-supply operational amplifiers providing rail-to-rail input and output capability. The TLV2374QPWRG4Q1 takes the minimum operating supply voltage down to 2.7 V and up to 16 V over the extended automotive temperature range. Therefore, the wide voltage range can support both start-stop functionality and a connection directly to the typical 12-V battery. The rail-to-rail capabilities allow the device to maximize the output signal and avoid clipping.
Specifications Of TLV2374QPWRG4Q1
|
Number of Circuits
|
|
|
Output Type
|
|
|
Slew Rate
|
|
|
Gain Bandwidth Product
|
|
|
Current - Input Bias
|
|
|
Voltage - Input Offset
|
|
|
Current - Supply
|
|
|
Current - Output / Channel
|
|
|
Voltage - Supply Span (Min)
|
|
|
Voltage - Supply Span (Max)
|
|
|
Operating Temperature
|
|
|
Grade
|
|
Features Of TLV2374QPWRG4Q1
Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
Device HBM ESD Classification Level 2
Device CDM ESD Classification Level C4B
Rail-to-Rail Input and Output
Wide Bandwidth: 3 MHz
High Slew Rate: 2.4 V/µs
Supply Voltage Range: 2.7 V to 16 V
Supply Current: 550 µA/Channel
Input Noise Voltage: 39 nV/√Hz
Input Bias Current: 1 pA
Ultra-Small Packaging:
5-Pin SOT-23 (TLV2371-Q1)
Applications Of TLV2374QPWRG4Q1
Engine Control Units (ECU)
Body Control Modules (BCM)
Battery Management Systems
HEV/EV Inverters
Lane Departure Warning
White Goods
