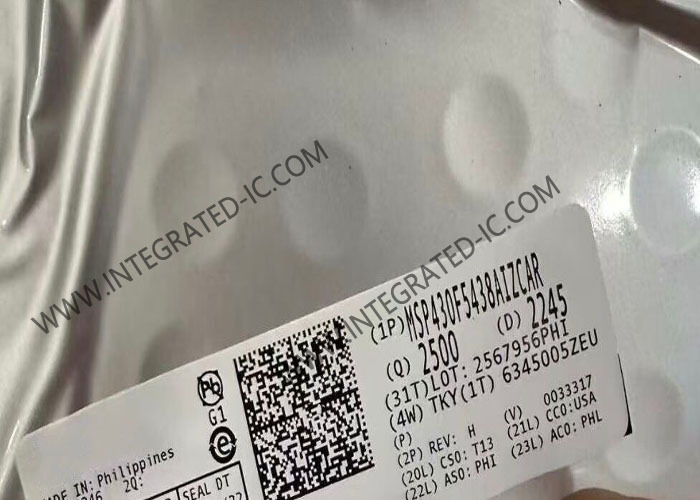

MSP430F5438AIZCAR Microcontroller MCU 25MHz Mixed-Signal Microcontrollers 16-Bit MCU
Product Description Of MSP430F5438AIZCAR
MSP430F5438AIZCAR is 16-Bit Mixed-Signal Microcontrollers configurations with three 16-bit timers, a high-performance 12-bit ADC, up to four USCIs, a hardware multiplier, DMA, an RTC module with alarm capabilities, and up to 87 I/O pins.
Specification Of MSP430F5438AIZCAR
|
Core Processor
|
|
|
Core Size
|
|
|
Speed
|
|
|
Connectivity
|
I2C, IrDA, LINbus, SCI, SPI, UART/USART
|
|
Peripherals
|
Brown-out Detect/Reset, DMA, POR, PWM, WDT
|
|
Number of I/O
|
|
|
Program Memory Size
|
256KB (256K x 8)
|
|
Program Memory Type
|
|
|
RAM Size
|
|
|
Voltage - Supply (Vcc/Vdd)
|
|
|
Data Converters
|
|
|
Oscillator Type
|
|
|
Operating Temperature
|
|
|
Mounting Type
|
|
|
Supplier Device Package
|
|
|
Package / Case
|
|
Features Of MSP430F5438AIZCAR
Low supply voltage range: 3.6 V down to 1.8 V
Wake up from standby mode in 3.5 µs (typical)
16-bit RISC architecture
– Extended memory
– Up to 25-MHz system clock
Flexible power-management system
– Fully integrated LDO with programmable regulated core supply voltage
– Supply voltage supervision, monitoring, and brownout
– 32-kHz crystals
– High-frequency crystals up to 32 MHz
16-bit timer TA0, Timer_A with five capture/ compare registers
16-bit timer TA1, Timer_A with three capture/ compare registers
16-bit timer TB0, Timer_B with seven capture/ compare shadow registers
Up to four universal serial communication interfaces (USCIs)
12-bit analog-to-digital converter (ADC)
– Internal reference
– Sample-and-hold
– Autoscan feature
– 14 external channels, 2 internal channels
Hardware multiplier supports 32-bit operations
Serial onboard programming, no external programming voltage needed
3-channel internal DMA
Basic timer with RTC feature
Applications Of MSP430F5438AIZCAR
Analog and Digital Sensor Systems
Digital Motor Controls
Remote Controls
Thermostats
Digital Timers
Hand-Held Meters
