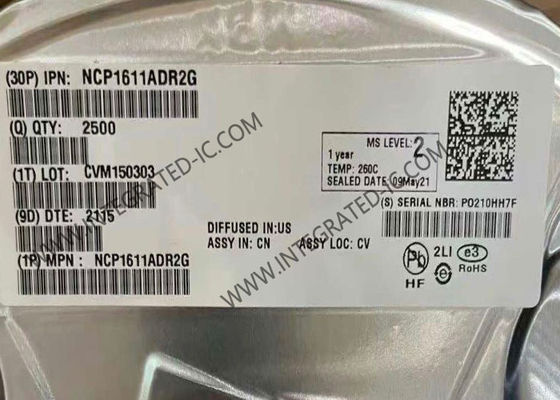

NCP1611ADR2G Integrated Circuit Chip Power Factor Correction 550mW Power Factor Controller

NCP1611ADR2G Integrated Circuit Chip Power Factor Correction 550mW Power Factor Controller​

Product Description Of NCP1611ADR2G

NCP1611ADR2G is Enhanced, High-Efficiency Power Factor Conduction, it is designed to drive PFC boost stages based on an innovative Current Controlled Frequency Fold-back (CCFF) method. In this mode, the circuit classically operates in Critical conduction Mode (CrM) when the inductor current exceeds a programmable value. When the current is below this preset level, the NCP1611ADR2G linearly decays the frequency down to about 20 kHz when the current is null.

Specification Of NCP1611ADR2G

Features Of NCP1611ADR2G

Near-Unity Power Factor
Critical Conduction Mode (CrM)
Current Controlled Frequency Fold-back (CCFF): Low Frequency Operation is Forced at Low Current Levels
On-time Modulation to Maintain a Proper Current Shaping in CCFF Mode
Skip Mode Near the Line Zero Crossing
Fast Line / Load Transient Compensation (Dynamic Response Enhancer)
Valley Turn on
High Drive Capability: −500 mA / +800 mA
VCC Range: from 9.5 V to 35 V
Low Start-up Consumption
A Version: Low VCC Start-up Level (10.5 V), B Version: High VCC Start-up level (17.0 V)
Line Range Detection
Configurable for Low Harmonic Content across Wide Line/Load Range

Typical Applications Of NCP1611ADR2G

PC, TV, Adapters Power Supplies
LED Drivers and Light Ballasts (including dimmable versions)
All Off-Line Applications Requiring Power Factor Correction
